New Equipment » Honda » TRX300X
Model Quick Search

$5,299.00

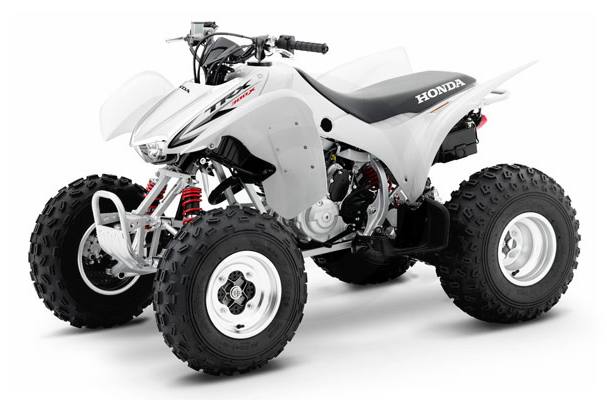

2009 Honda TRX300X
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The TRX300X is endowed with a 282cc Honda SOHC engine, push-button electric start, a race-style chain final-drive system, a solid five-speed-with-reverse transmission and a double-wishbone front suspension. And it's wrapped up with our renowned reliability, legendary quality, and unique brand of intelligent human engineering. Bottom line: It's a Honda, and in the ATV world it just doesn't get any better than that.

    ENGINE
    • Engine Type: 282 cc Air-Cooled SOHC Single-Cylinder Four-Stroke
    • Bore x Stroke: 74 x 65.5 mm
    • Induction: 32 mm Piston-Valve With Accelerator Pump Carburetor
    • Ignition: CD With Electronic Advance
    • Starter: Electric
    DRIVE TRAIN
    • Clutch: Manual
    • Transmission: Five-Speed With Reverse
    • Driveline: O-Ring-Sealed Chain
    CHASSIS/SUSPENSION/BRAKES
    • Front Suspension: Independent Double-Wishbone With Dual Hydraulic Shocks, Five-Position Spring Preload Adjustability, 7.1 in. Travel
    • Rear Suspension: Swingarm With Single Shock, Five-Position Spring Preload Adjustability, 7.9 in. Travel
    • Front Brakes: Dual Hydraulic Disc
    • Rear Brakes: Single Hydraulic Disc
    • Front Tires: 22x7-10 Knobby
    • Rear Tires: 22x10-9 Knobby
    DIMENSIONS
    • Length: 67.7 in.
    • Width: 43.5 in.
    • Height: 41.8 in.
    • Wheelbase: 45 in.
    • Seat Height: 30.5 in.
    • Ground Clearance: 4.6 in.
    • Turning Radius: 10.2 ft.
    • Curb Weight: 390 lbs.
    • Fuel Capacity: 2.2 gal. (Including Reserve)
    • Available Colors: White, Red
    FACTORY WARRANTY INFORMATION
    • Warranty: Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

    Specifications

    Engine
    Engine Type SOHC four-stroke
    Displacement 282 cc
    Bore x Stroke 74 x 65.5 mm
    Cylinders Single-cylinder
    Engine Cooling Air-cooled
    Fuel System 32 mm piston-valve with accelerator pump carburetor
    Starting System Electric
    Chassis
    Front Suspension Independent double-wishbone with dual hydraulic shocks; five-position spring preload adjustability
    Front Travel 7.1 in.
    Front Brake Type Dual hydraulic disc
    Front Tires 22 x 7-10 knobby
    Rear Travel 7.9 in.
    Rear Suspension Swingarm with single shock; five-position spring preload adjustability
    Rear Brake Type Single hydraulic disc
    Rear Tires 22 x 10-9 knobby
    Dimensions/Capacities
    Dry Weight 390 lbs.
    Fuel Capacity 2.2 gal. (including 0.5-gallon reserve)
    Ground Clearance 4.6 in.
    Machine Dimensions (LxWxH) 67.7 x 43.5 x 41.8 in.
    Wheelbase 45 in.
    Drive Train
    Final Drive O-ring-sealed chain
    Transmission Five-speed with Reverse
    General
    Colors White, Red
    Warranty Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model TRX300X
    Style Sport
    MSRP* $5,299.00
    Chassis
    Front Suspension Independent double-wishbone with dual hydraulic shocks; five-position spring preload adjustability
    Front Travel 7.1 in.
    Front Brake Type Dual hydraulic disc
    Front Tires 22 x 7-10 knobby
    Rear Suspension Swingarm with single shock; five-position spring preload adjustability
    Rear Travel 7.9 in.
    Rear Brake Type Single hydraulic disc
    Rear Tires 22 x 10-9 knobby
    Frame
    Dimensions/Capacities
    Dry Weight 390 lbs.
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 2.2 gal. (including 0.5-gallon reserve)
    Ground Clearance 4.6 in.
    Machine Dimensions (LxWxH) 67.7 x 43.5 x 41.8 in.
    Wheelbase 45 in.
    Drive Train
    Drive Train
    Final Drive O-ring-sealed chain
    Transmission Five-speed with Reverse
    Engine
    Engine Type SOHC four-stroke
    Displacement 282 cc
    Bore x Stroke 74 x 65.5 mm
    Cylinders Single-cylinder
    Engine Cooling Air-cooled
    Fuel System 32 mm piston-valve with accelerator pump carburetor
    Starting System Electric
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors White, Red
    Warranty Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan
